Imported High Speed Square Body Single Facer
Back to products
Imported Cassette Type Corrugation
Watch video

Imported High Speed Single Facer With Vimble Drive

The Imported Fingerless Corrugation Machine operates efficiently at 35 meters per minute, featuring a robust design with 280 mm flute rolls and 300 mm pre-heater rolls for precise corrugated board formation. It includes a 290 mm pressure roll with dual motor-powered gum application, a Delta AC drive for seamless speed control, and pneumatic controls for roller lifts. Vacuum suction and air conditioning stabilize high-speed production, while durable 46 CrMo alloy steel corrugated rollers and high-temperature bearings ensure reliable performance.

Enquire Now
Whatsapp Now

Capability and Features

The Imported Fingerless Corrugation Machine operates at an economical speed of 35 meters per minute, ensuring efficient production. The machine features a robust design with a flute roll diameter of 280 mm and pre-heater rolls of 300 mm in diameter, facilitating the precise formation of corrugated board. The 290 mm diameter pressure roll, combined with a tray for gum application powered by two motors, ensures accurate and consistent adhesive application.

Equipped with a Delta AC drive and a control panel, the machine provides seamless speed control and operational adjustments. An integrated blower maintains optimal operating conditions, while the drive reducer, featuring immersion oil lubrication, minimizes noise and uses a cardan drive for isolated power transmission. Pneumatic controls for the flute roller, pressure roller, and glue roller lifts enhance operational efficiency and flexibility.

The machine employs vacuum suction to lead the paper, supported by air conditioning to stabilize high-speed corrugated board production. High-temperature bearings lubricated with grease ensure smooth and reliable roller pressure. The corrugated roller, made from high-quality 46 CrMo chromium molybdenum alloy steel, guarantees durability and precision, making the machine a reliable choice for high-performance corrugation operations.

Related Product

Imported 3 Ply Semi Automatic Flute Laminator

Semi-Automatic flute laminating with Height top feeder suitable for bottom cardboard and cardboard of 350 grams or more, the cardboard and A/B/C/D/E/F and double-layer corrugated cardboard. Max. Speed: 108m/min Semi-Automatic flute laminating with Height top feeder suitable for bottom cardboard and cardboard of 350 grams or more, the cardboard and A/B/C/D/E/F and double-layer corrugated cardboard.

Imported Auto Feeder

Increasing productivity and accuracy in feeding process can be supplied with air belt and fan for accurate feeding of board (while using this machine). We do not recommend conveyor for wet sheets Sizes in Width: 2400 MM/2600 MM/2800 MM/3000 MM

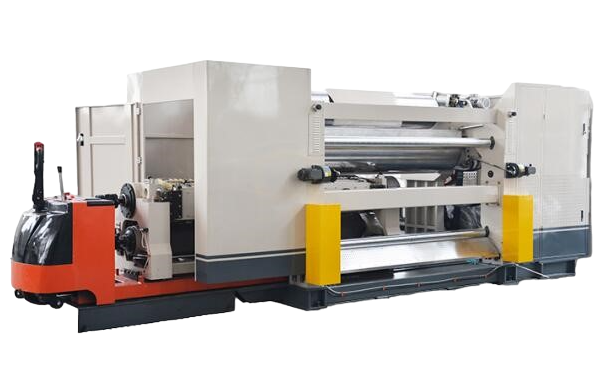

Imported Cassette Type Corrugation

The Imported Fingerless Corrugation Machine is designed for efficient and high-quality corrugated board production. It features a negative pressure design for superior bonding and consistent glue application. The machine allows quick roll changes, with durable 48 CrMo alloy steel corrugated rollers and a chrome-treated pressure roller for precise control. An easy-maintenance adhesive roller unit with an adjustable glue system ensures continuous operation. The user-friendly PLC touch control system and integrated pre-regulator optimize paper quality, making this machine a reliable choice for precise and efficient corrugation.

Imported Chain Feeder Printer With Rotary Creaser Slotter (Rs.4) Machine

Chain Feeder MultiColor Flexo Printer for corrugated boxes is used for printing corrugated board at a high speed with best in class quality. With our flexo printer you can target 18,000-30,000 corrugated boards in a day depending on number of SKUs.

Imported Chain Feeder Printer With Rotary Die Machine

Our Rotary Die Cutting Machine comes with a slotting attachment and can be used to slot, crease, die cut and optionally print paper corrugated boards in one shot. Slotting attachment helps save changeover time and die costs for regular slotted (master or shipper) cartons. Rotary Die technology is more robust in handling corrugated boards from manual or semi automatic plants due to better ability to convert boards with higher moisture content. Hence they are universally preferred in Indian subcontinent, African, Middle Eastern, Vietnam and other markets where manual, semi automatic and automatic plants are found in equal proportion.

Imported Electrical Shaftless Reel Stand

The Imported Electrical Reel Stand efficiently handles reel paper up to 1500 mm in diameter, with an adjustable width between 1400 mm and 2000 mm. Its hydraulic system offers precise control over lifting, lowering, clamping, and positioning, while the pneumatic brake system ensures stable tension and consistent feeding. With adjustable clamping widths, it provides flexibility for various reel sizes, enhancing efficiency and reliability in production.

Imported Fully Automatic Box Stitching Machine

Auto Stitcher now invented with Auto-Feeding system to reduce manual labor and achieve higher production.

Imported Fully Automatiic Box Stitcher And Gluer Combine Model Machine

The automatic nail-stick box integrated machine is a high-efficiency system for box production, featuring four key sections: Paper Supply, Glue Folding, Stitching and Pressing, and Counting and Stacking. It offers digital speed control, automatic functions, and a production speed of up to 220 sheets per minute. The machine prioritizes energy savings and environmental protection, using advanced motor frequency conversion and Siemens AC contactors for stable operation. It includes a user-friendly touch interface with a Panasonic PLC, ensuring ease of use, maintenance, and future upgrades. Designed for reliability and efficiency, it meets European safety standards.

Imported High Speed Square Body Single Facer

The machine is designed for efficient, precise, and user-friendly operation. It features a suction hood structure with a high-pressure blower and silencer for effective material handling and noise reduction. Centralized air and electrical controls enhance safety, while the robust construction ensures durability. A steam spray device regulates core paper moisture, optimizing processing. The advanced drive system, equipped with a frequency conversion motor and durable corrugated rollers, offers precise speed control and quick flute type changes. The machine includes a sophisticated glue section with automated supply, precise control, and easy maintenance, all managed via a touch screen interface for enhanced usability.

Imported Hyraulic Shaftless Reel Stand

The Imported Hydraulic Reel Stand offers efficient reel paper handling with motorized controls for lifting, lowering, and positioning. It supports reel papers up to 1500 mm in diameter, with adjustable clamping widths from 600 mm to 2000 mm. The stand features manual tension control via brakes and a 6 kW power system for robust performance. Safety is enhanced by a cycloid motor that prevents overload, ensuring reliable and secure operation in production environments.

Imported Semi Automatic Box Stitching Machine

Single Piece Semi Auto Servo Corrugated Box Stitcher comes with jumbo roll facility and digital display for monitoring and changing sizes. Auto

Imported Sheet Cutter PLC And NC Cutter

The Imported Programming Sheet Cutter Machine offers high-precision cutting with a double knife system and anti-backlash gear for accurate cuts. It integrates with production lines through computerized synchronization and features an advanced man-machine interface for easy operation. Capable of storing up to 99 orders and cutting with an accuracy of ±1 mm, the machine supports variable sheet lengths and ensures consistent quality with minimal waste.
