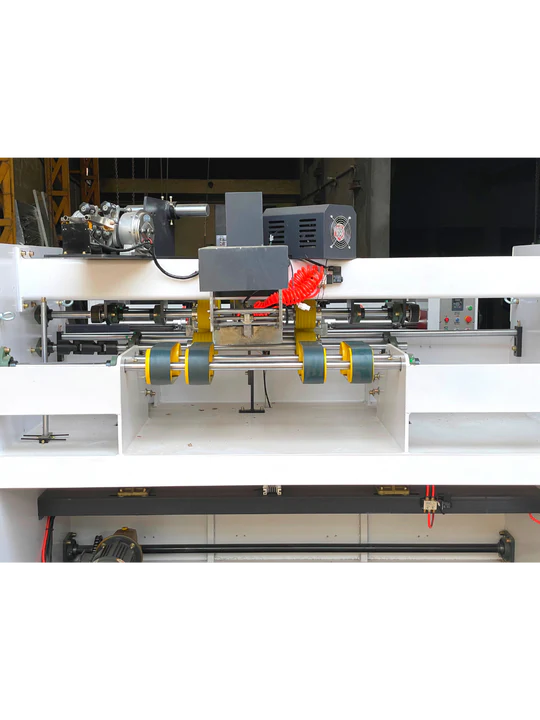

Imported Semi Automatic Box Stitching Machine

Enquire Now
Whatsapp Now

Capability and Features

Single Piece Semi Auto Servo Corrugated Box Stitcher comes with jumbo roll facility and digital display for monitoring and changing sizes.

Auto stack, Auto count and ‘one push’ Auto strap can be attached to make the machine output faster and more efficient.

This high speed Stitching machine has become a staple in corrugation packaging industry today due to its precision and high speed and is an essential addition for packaging houses to continue to be productive.

Standard size is 2600mm.

Technical parameter:

Model and Configurations

SDJ-2000

Maximum size (A+B) x2

4000

Minimum size (A+B) x2

1060

Maximum length A

2850

Minimum length A

350

Maximum width B

1000

Minimum width B

180

Maximum size( C+D+C)

2500

Minimum height ( C+D+C )

400

Maximum cover C

560

Minimum cover C

50

Maximum height D

2000

Minimum height D

150

Maximum width of nail tongue

45

Nails distance

30-150

Order number

1-99

Mechanical speed

500

Total weight (ton)

2.5
main

Main structure:

  • Fuji Japanese double servo drive,
  • High precision mechanical transmission parts that effectively reduce failure rate
  • Delta touch screen operation to easily input control parameters
  • Adopts top international brand PLC control system
  • Used Stepper motor drives whereby precise size or dimension is easier and quicker
  • Contactor control box use Siemens brand
  • Photoelectric and close switch adopts Schneider brand
  • Bottom die, blade made by Japan's tungsten steel
  • Single screw , double nail , strengthen nails ( two head is double for single screw) in the middle of a one-time, fit the different demands of different customers to nail.
  • Change the carton size and adjust screw pitch in a minute
  • Can nail box with a cover & without cover carton box
  • Automatic counting - equipped with photoelectric sensors - on the feeding table feed automatically rises
  • After a period of automatic counting function, make the finished product number according to quantity (1-99)
  • Mechanical speed: 600 nail/min
  • Nailing distance: adjustable from 30-120mm
  • Lifting table effective height: 900 mm
  • Machine covers an area of 2.8 x1.7 x1.8 meters
  • The machine weight: 2.0tons
  • Can store up to a 1000 order programs

Related Product

Imported 3 Ply Semi Automatic Flute Laminator

Semi-Automatic flute laminating with Height top feeder suitable for bottom cardboard and cardboard of 350 grams or more, the cardboard and A/B/C/D/E/F and double-layer corrugated cardboard. Max. Speed: 108m/min Semi-Automatic flute laminating with Height top feeder suitable for bottom cardboard and cardboard of 350 grams or more, the cardboard and A/B/C/D/E/F and double-layer corrugated cardboard.

Imported Auto Feeder

Increasing productivity and accuracy in feeding process can be supplied with air belt and fan for accurate feeding of board (while using this machine). We do not recommend conveyor for wet sheets Sizes in Width: 2400 MM/2600 MM/2800 MM/3000 MM

Imported Cassette Type Corrugation

The Imported Fingerless Corrugation Machine is designed for efficient and high-quality corrugated board production. It features a negative pressure design for superior bonding and consistent glue application. The machine allows quick roll changes, with durable 48 CrMo alloy steel corrugated rollers and a chrome-treated pressure roller for precise control. An easy-maintenance adhesive roller unit with an adjustable glue system ensures continuous operation. The user-friendly PLC touch control system and integrated pre-regulator optimize paper quality, making this machine a reliable choice for precise and efficient corrugation.

Imported Economical Leadedge Printer Slotter Rotary Die Cutting Machine With Stacker

The Imported Economical Leadedge Printer Slotter Rotary Die Cutting Machine with Stacker is a versatile and high-performance solution for printing, slotting, and die-cutting. It features premium components from Siemens and Schneider for reliable performance, precision-engineered shafts and rollers, and advanced gear technology with a robust transmission system. The machine offers automatic lubrication, easy gap adjustments, and energy efficiency through frequency conversion control. Customizable options, such as rotary die-cutting and ceramic anilox rollers, make it adaptable to diverse production needs.

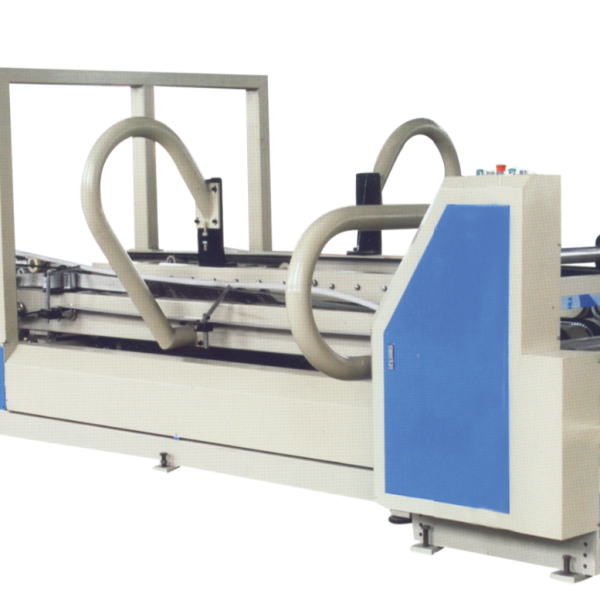

Imported Fully Automatic Folder Gluer Machine
