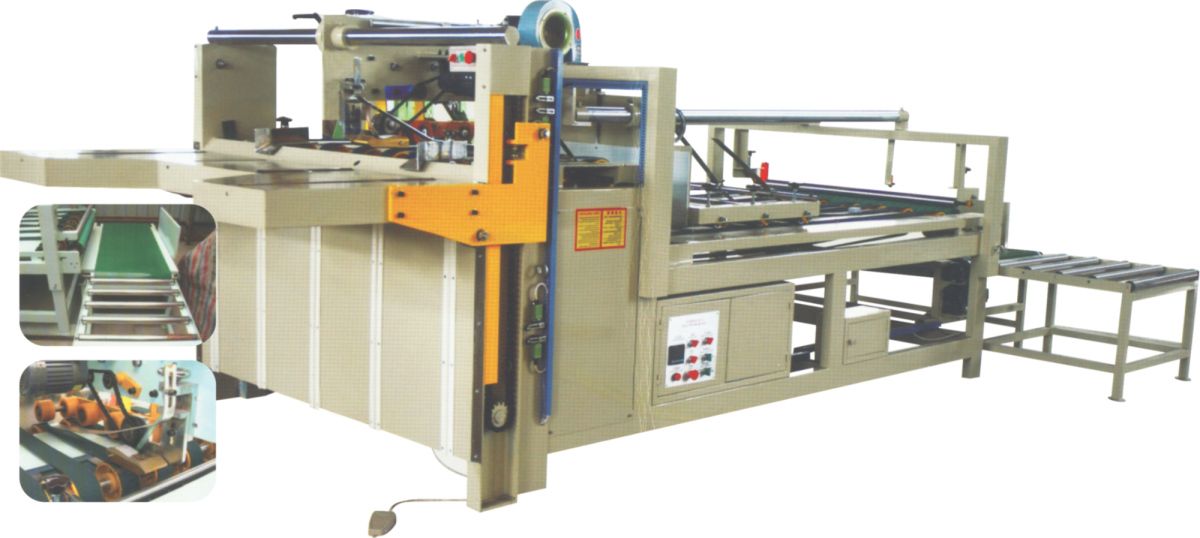

Imported Semi-automatic Folder Gluer Machine

Our Combined Pressure folder gluer allows both universal and die cut corrugated cartons to be flap pasted. Comes with auto feeder, grinder and combined pressure belt.

The most loved folder gluer machine for corrugated boxes and mono-cartons. Laminated/coated/printed corrugated board can also be pasted on this machine using an additional grinding attachment.

The grinder makes an incision on the laminated/coated surface to apply the gum clinically so that flap can be pasted securely.

Enquire Now
Whatsapp Now

Capability and Features

Our Combined Pressure folder gluer allows both universal and die cut corrugated cartons to be flap pasted. Comes with auto feeder, grinder and combined pressure belt.

The most loved folder gluer machine for corrugated boxes and mono-cartons. Laminated/coated/printed corrugated board can also be pasted on this machine using an additional grinding attachment.

The grinder makes an incision on the laminated/coated surface to apply the gum clinically so that flap can be pasted securely.

The machine is extremely easy to operate and any operator can be easily trained to work this at a high productivity. This is extremely flexible for all production levels of packaging manufacturers.

Machine can be ordered with single or double glue tank.

In double tank boxes can be fed from both sides to get ‘twice the productivity’ of one machine.

table
MODEL 1500  1800
MAX.SIZE 1460*1100MM 1800*1100MM
MIN.SIZE 260*180MM 260*180MM
POWER 2KW 2KW
WEIGHT 1.2T 1.2T
CURRENT 4.3A 4.3A
OVERALL SIZE 2360*1700*1250 2360*2300*1250MM
